Aerial Fiber Optic Cable Manufacturer from China Since 2004

Aerial Installation Fiber Optic Cable

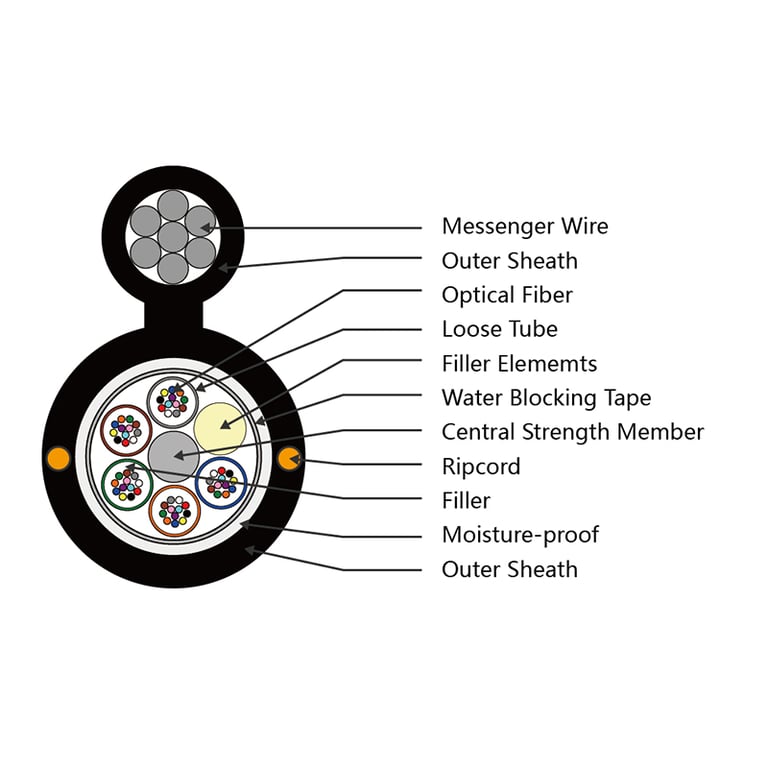

FIBERFUTURE® GYTC8A/S cable, single-mode/multimode fibers are positioned in the loose tubes, while the loose tubes strand together around metallic central strength member into a compact and circular cable core, and the water-blocking materials are distributed into interstices of it. After a APL is applied around the cable core, this part of cable accompanied with the stranded wires as the supporti

Figure 8 Cable With Aluminum Tape GYTC8A

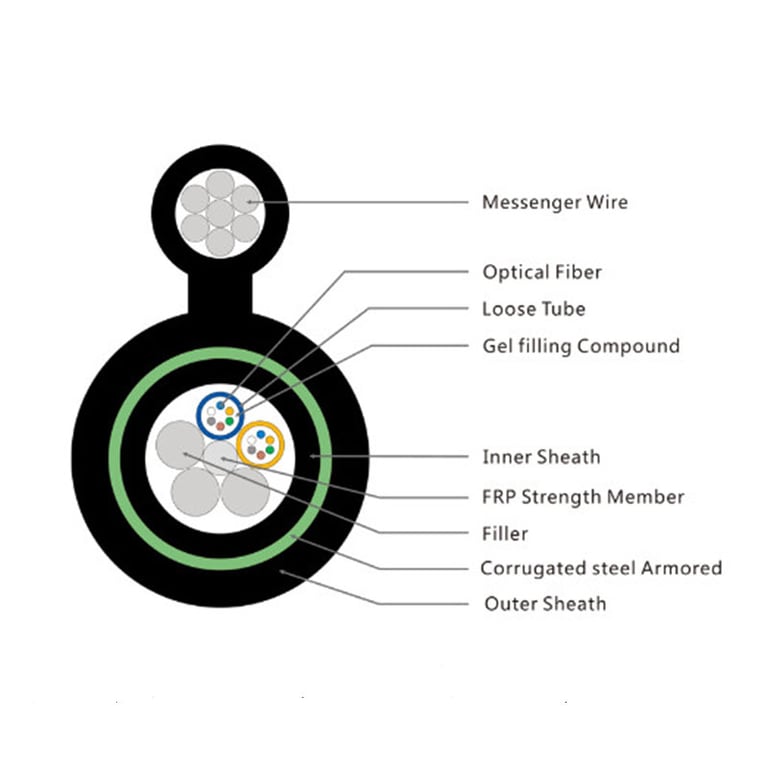

FIBERFUTURE® GYXTC8S cable,single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials and filled with filling compound.PSP is longitudinally applied around the loose tube, and water-blocking materials are distributed into interstices of it.Then.this part of cable accompanied with the stranded wires as the supporting part are completed with a PE s

Aerial Figure 8 Self-supporting Optical Cable With PSP Armored Uni-tube GYXTC8S
FIBERFUTURE® GYXTC8Y Mini Figure 8 drop Fiber Optic Cable which is an excellent stripping performance of tight buffer fiber Cable, its diameter and bending radius are small. It’s full filling with aramid yarn. It can installation freely in narrow room.This cable consist of the loose tube with single mode or multimode fibers and steel wire as the messenger wire, which are formed like “Figure 8”.

Small Figure-8 Self-Supporting Central Tube Aerial Fiber Optic Cable GYXTC8Y
FIBERFUTURE® GYTC8A/S cable, single-mode/multimode fibers are positioned in the loose tubes, while the loose tubes strand together around metallic central strength member into a compact and circular cable core, and the water-blocking materials are distributed into interstices of it. After a APL is applied around the cable core, this part of cable accompanied with the stranded wires as the supporti

Figure 8 Cable With Steel Tape GYTC8S
FIBERFUTURE® GYFTC8S Figure 8 Cable is Figure-8 self-supporting outdoor optical cable for communication with non-metallic reinforcement components, loose layer twisted filler and polyethylene sheath.

Figure 8 Fiber Optic Cable Aerial Stranded GYFTC8S

Aerial fiber optic cable（figure 8 cable） is a fibre optic cable that is hung on a pole and is required to be able to adapt to various natural environments. Aerial optical fiber cables can be laid using the original overhead open line poles, saving construction costs and shortening the construction period. It is suitable for areas with flat terrain and small undulations. Aerial fiber optic cable is mainly hung under the steel strand and self-supporting between poles. Its laying method is through the pole hanging line bracket hanging or bundle (winding) erection.

Image	Product Name	Fiber Core	Inquire
	GYTC8A with APL armored figure-8 cable	2/4/6/8/12/16/24/36/48/96/144	Inquire
	GYTC8S with PSP armored figure-8 cable	2/4/6/8/12/16/24/36/48/96/144	Inquire
	GYXTC8S PSP Armored Uni-tube Aerial Installation Figure-8 Self-supporting Optical Cable	2/4/6/8/12	Inquire
	GYXTC8Y-Small Figure-8 Self-Supporting Central Tube Aerial Installation Optic Cable	2/4/6/8/12	Inquire
	GYFTC8A FRP CSM Aluminum Armored Aerial Installation Figure-8 Self-supporting Optical Cable	2/4/6/8/12/16/24/36/48/96/144	Inquire
	GYFTC8Y53 FRP Double Sheath Aerial Installation Figure-8 Self-supporting Optical Cable	2/4/6/8/12/16/24/36/48/96/144	Inquire
	GYFTC8A53 FRP Double Sheath Aerial Installation Figure-8 Self-supporting Optical Cable	2/4/6/8/12/16/24/36/48/96/144	Inquire
	GJYC8H Self-supported Round Drop Cable	2/4/6/8/12	Inquire

FAQS Of Aerial Fiber Optic Cable

Q

Do you have a price list?

A

We are a professional manufacturer of fiber optic cable and FTTx products. All of our fiber optic cables are made according to different specs or materials to meet clients’ unique requirements. Therefore, we don’t have a price list.
Q

Can I have a custom cable designed and sample order?

A

We provide design service for all clients. MoQ of sample order is subject to the specific design.
Q

Can I have my unique design(colors, marks, etc)?

A

Yes, your design such as cable color and marks are all welcome. Just send us color code and marks details.
Q

How long is your delivery time?

A

5-10 days if the goods are in stock. 2-3 weeks if the goods are not in stock, mostly depends on quantity and production plan.
